概述

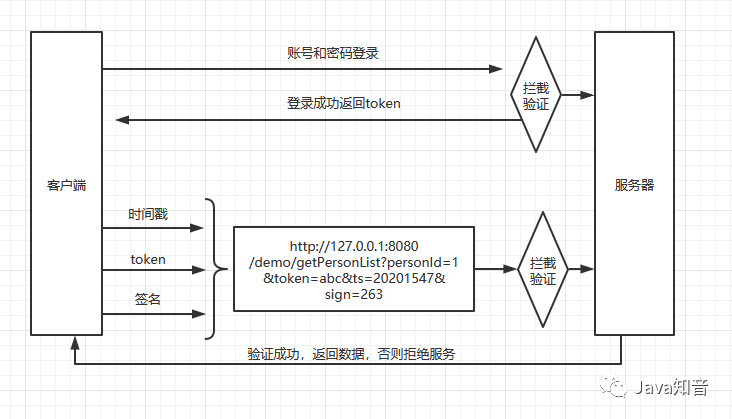

与前端对接的API接口，如果被第三方抓包并进行恶意篡改参数，可能会导致数据泄露，甚至会被篡改数据，我主要围绕时间戳，token，签名三个部分来保证API接口的安全性
1.用户成功登陆站点后，服务器会返回一个token，用户的任何操作都必须带了这个参数，可以将这个参数直接放到header里。
2.客户端用需要发送的参数和token生成一个签名sign，作为参数一起发送给服务端，服务端在用同样的方法生成sign进行检查是否被篡改。
3.但这依然存在问题，可能会被进行恶意无限制访问，这时我们需要引入一个时间戳参数，如果超时即是无效的。
4.服务端需要对token，签名，时间戳进行验证，只有token有效，时间戳未超时，签名有效才能被放行。
开放接口
没有进行任何限制，简单粗暴的访问方式，这样的接口方式一般在开放的应用平台，查天气，查快递，只要你输入正确对应的参数调用，即可获取到自己需要的信息，我们可以任意修改参数值。
/*
* Description: 开放的接口
* @author huangweicheng
* @date 2020/12/21
*/
@RestController
@RequestMapping("/token")
public class TokenSignController {
@Autowired
private TokenSignService tokenSignService;
@RequestMapping(value = "openDemo",method = RequestMethod.GET)
public List openDemo(int personId) {
return tokenSignService.getPersonList(personId);
}
}
Token认证获取
用户登录成功后，会获取一个ticket值，接下去任何接口的访问都需要这个参数。我们把它放置在redis内，有效期为10分钟，在ticket即将超时，无感知续命。延长使用时间，如果用户在一段时间内没进行任何操作，就需要重新登录系统。扩展：
@RequestMapping(value = "login",method = RequestMethod.POST)
public JSONObject login(@NotNull String username, @NotNull String password){
return tokenSignService.login(username,password);
}
登录操作，查看是否有这个用户，用户名和密码匹配即可成功登录。
/**
*
* Description:验证登录，ticket成功后放置缓存中,
* @param
* @author huangweicheng
* @date 2020/12/31
*/
public JSONObject login(String username,String password){
JSONObject result = new JSONObject();
PersonEntity personEntity = personDao.findByLoginName(username);
if (personEntity == null || (personEntity != null && !personEntity.getPassword().equals(password))){
result.put("success",false);
result.put("ticket","");
result.put("code","999");
result.put("message","用户名和密码不匹配");
return result;
}
if (personEntity.getLoginName().equals(username) && personEntity.getPassword().equals(password)){
String ticket = UUID.randomUUID().toString();
ticket = ticket.replace("-","");
redisTemplate.opsForValue().set(ticket,personEntity.getLoginName(),10L, TimeUnit.MINUTES);
result.put("success",true);
result.put("ticket",ticket);
result.put("code",200);
result.put("message","登录成功");
return result;
}
result.put("success",false);
result.put("ticket","");
result.put("code","1000");
result.put("message","未知异常，请重试");
return result;
}
Sign签名
把所有的参数拼接一起，在加入系统秘钥，进行MD5计算生成一个sign签名，防止参数被人恶意篡改，后台按同样的方法生成秘钥，进行签名对比。
/**
* @param request
* @return
*/
public static Boolean checkSign(HttpServletRequest request,String sign){
Boolean flag= false;
//检查sigin是否过期
Enumeration pNames = request.getParameterNames();
Map params = new HashMap();
while (pNames.hasMoreElements()) {
String pName = (String) pNames.nextElement();
if("sign".equals(pName)) continue;
String pValue = (String)request.getParameter(pName);
params.put(pName, pValue);
}
System.out.println("现在的sign-->>" + sign);
System.out.println("验证的sign-->>" + getSign(params,secretKeyOfWxh));
if(sign.equals(getSign(params, secretKeyOfWxh))){
flag = true;
}
return flag;
}
重复访问
引入一个时间戳参数，保证接口仅在一分钟内有效，需要和客户端时间保持一致。
public static long getTimestamp(){
long timestampLong = System.currentTimeMillis();
long timestampsStr = timestampLong / 1000;
return timestampsStr;
}
需要跟当前服务器时间进行对比，如果超过一分钟，就拒绝本次请求，节省服务器查询数据的消耗
拦截器
每次请求都带有这三个参数，我们都需要进行验证，只有在三个参数都满足我们的要求，才允许数据返回或被操作。
public class LoginInterceptor implements HandlerInterceptor {
@Autowired
private RedisTemplate redisTemplate;
@Override
public boolean preHandle(HttpServletRequest request, HttpServletResponse response,Object handler) throws IOException {
JSONObject jsonObject = new JSONObject();
String ticket = request.getParameter("ticket");
String sign = request.getParameter("sign");
String ts = request.getParameter("ts");
if (StringUtils.isEmpty(ticket) || StringUtils.isEmpty(sign) || StringUtils.isEmpty(ts)){
jsonObject.put("success",false);
jsonObject.put("message","args is isEmpty");
jsonObject.put("code","1001");
PrintWriter printWriter = response.getWriter();
printWriter.write(jsonObject.toJSONString());
return false;
}
//如果redis存在ticket就认为是合法的请求
if (redisTemplate.hasKey(ticket)){
System.out.println(redisTemplate.opsForValue().getOperations().getExpire(ticket));
String values = (String) redisTemplate.opsForValue().get(ticket);
//判断ticket是否即将过期，进行续命操作
if (redisTemplate.opsForValue().getOperations().getExpire(ticket) != -2 && redisTemplate.opsForValue().getOperations().getExpire(ticket) < 20){
redisTemplate.opsForValue().set(ticket,values,10L, TimeUnit.MINUTES);
}
System.out.println(SignUtils.getTimestamp());
//判断是否重复访问，存在重放攻击的时间窗口期
if (SignUtils.getTimestamp() - Long.valueOf(ts) > 600){
jsonObject.put("success",false);
jsonObject.put("message","Overtime to connect to server");
jsonObject.put("code","1002");
PrintWriter printWriter = response.getWriter();
printWriter.write(jsonObject.toJSONString());
return false;
}
//验证签名
if (!SignUtils.checkSign(request,sign)){
jsonObject.put("success",false);
jsonObject.put("message","sign is invalid");
jsonObject.put("code","1003");
PrintWriter printWriter = response.getWriter();
printWriter.write(jsonObject.toJSONString());
return false;
}
return true;
}else {
jsonObject.put("success",false);
jsonObject.put("message","ticket is invalid,Relogin.");
jsonObject.put("code","1004");
PrintWriter printWriter = response.getWriter();
printWriter.write(jsonObject.toJSONString());
}
return false;
}
}
访问

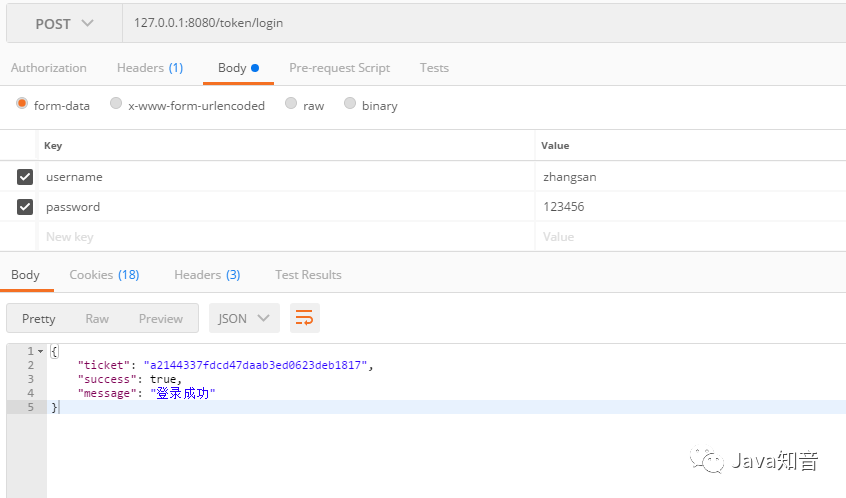

先登录系统，获取合法的ticket

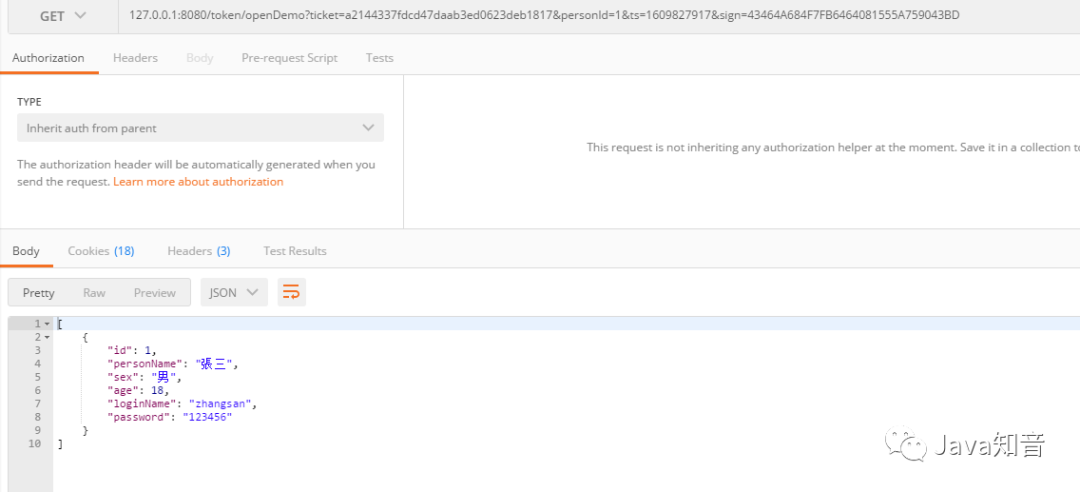

生成一个合法的sign验证，获取测试ts，访问，即可正常访问。还可以将参数加密，将http换成https，就不一 一展开了。
demo代码
